KARCHER, HD3101DR

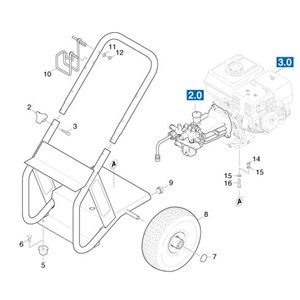

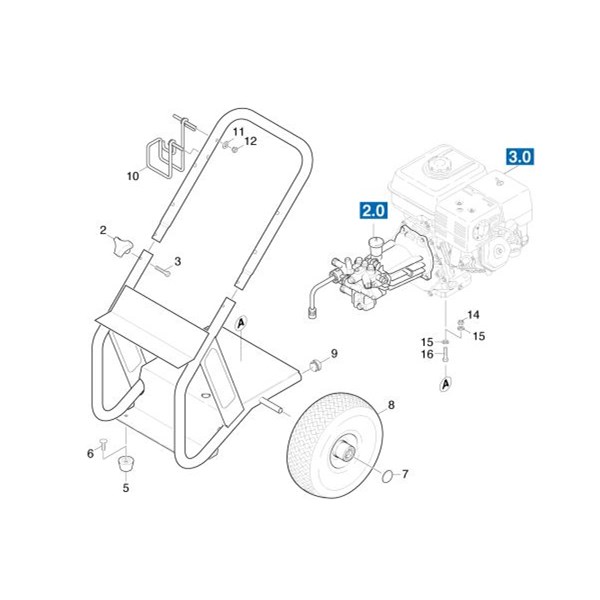

EXPLODED DIAGRAM
REPAIR PARTS
- Total: 5
Position:
| Product | Availability |
Price
|
Note | ||
|---|---|---|---|---|---|
| Rubber Dampener 5/16"-18F, 9.183-405.0 | 0 |
$6.30 |
|
Position:
| Product | Availability |
Price
|
Note | ||
|---|---|---|---|---|---|
| Karcher Black Plastic Plug 9.183-001.0 | 0 |
$3.15 |
|
Position:
| Product | Availability |
Price
|
Note | ||
|---|---|---|---|---|---|
| Saucer Hex Head Screw 1/4"-20 Karcher 9.196-307.0 | 0 |
$2.10 |
|
Position:
| Product | Availability |
Price
|
Note | ||
|---|---|---|---|---|---|
| 5/16-18 x 1/2 Carriage Bolt 9.196-308.0 Karcher | 0 |
$3.10 |
|
Position:
| Product | Availability |
Price
|
Note | ||
|---|---|---|---|---|---|
| Cap, Black Plastic, 5/8" Fastener - Karcher 9.182-506.0 | 0 |
$9.45 |
|
- Total: 5
KARCHER, HD3101DR
